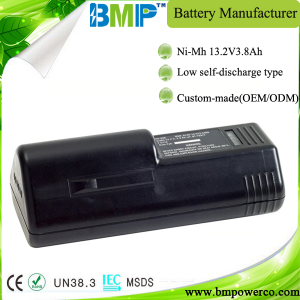

Ni-Mh battery 13.2V3.8AH battery pack for Portable Thermal Camera

• Our AA80B is designed according to Military Standards and MIL-PRF-32052/1 compliant
• This is high performance rechargeable Nickel Metal Hydride battery.
• High capacity, performance verified, hermetically sealed Nickel Metal Hydride cells.
• Absolute state of charge indicator.
• Comparable to: BT-70492A, BT-70492, BT-70724, AA-86A, and AA-80A


  Dimensions	Length 146 mm Width 64 mm Height 53 mm
  Weight	0.7 kg
  Voltage	Nominal 13.2 V Maximum 8.4 V
  Capacity	3   3.8 Ah
  Operating Temperature	–   20°C to + 55°C
  Storage Temperature	–   40°C to + 55°C
  Connector	Two flat contacts on bottom side of case
  State of Charge Display	5   segment LCD

1. High capacity and long cycle life.
2. Low inner resistance and low self-discharge
3. Safety and reliability
4. Wide temperature range, can specially design battery used in high and low temperature
5. Provide both single cells and battery packs
6. All products are inspected strictly with the match of capacity.
7. Rapid charge-discharge cycle life up to above 500 times .
8. Good performance

• Sophie Portable Thermal Camera.
• Mirabel Portable Thermal Camera

1. Do not dispose of cell into a fire or dismantled under any condition
2. Do not mix different cell types and capacities in the same battery assembly
3. Charge and discharge under specified current recommend to the specification
4. Short circuit leading to cell venting must be avoided
5. Never solder onto cell directly
6. Cell reversal should be avoided
7. Use batteries in extreme condition may affect the service life, such as: extreme temperature ,deep cycle,extreme overcharge and over discharge
8. Batteries should be stored in a cool, dry place,Please discharge before mass storage or transportation
9. Once problems be found,stop using,send batteries to local agent
10. To maintain the performance of the cell stored for about 6 months, cycling(charging and discharging) the cell for several times is recommended
