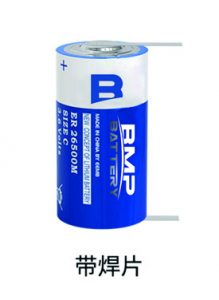

Li-SOC12 battery ER26500
Li-SOCL2 battery C size ER26500 3.6V9000mAh for Medical Devices
| Battery Type | Li-SOC12 battery |
| Battery Model | ER26500 |
| FOB(shenzhen) | USD2.9-3.2/pc Get Latest Price |
| MOQ | 1000pcs |
| Supply Ability | 5000000pcs per month |
| Certification | CE, ROHS, UL, IEC, MSDS, UN38.3 |
| Payment Terms | TT,L/C,Western Union, Paypal |
| Lead time | 15-20days(5-7 days for samples) |
Specification
- Nominal voltage: 3.6V
- Nominal capacity: 9000mAh
- Maximum continuous discharge current: 180mA
- Maximum pulse current: 320mAh
- Dimensions (D x H): 26.2 x 65.0mm
- Weight: 55g
- Shelf time:10 years
Advantages
1. High energy density
2. High open circuit voltage
3. Stable operating voltage and current
4. Wide operating temperature range, -30°C~+60°C.
5. Long shelf life, more than 10 years for low power equipment
6. Low self-discharge rate
7. Stainless steel can and cover
8. Hermetic glass-to-metal full sealed, laser welding, no leak
9. Non-flammable electrolyte
10 .Superior drain capacity
Application
- Memory backup: CMOS memory, RTC(real time clock) and computer backup.
- utility meters: Electricity meter, gas meter and water meter etc
- Wireless alarm sensors: Smoke alarm systems, temperature monitors etc.
- Remote monitor systems: GPS, sea buoys, lifejacket lights, lifecraft lights, cargo-locating systems etc.
- Automotive and electronics: Automotive security systems, tire-pressure monitoring systems etc.
- Electronics toll tags: Toll gates
Other Models
Li-SOCL2 battery
| Model | Size | Nominal Voltage(V) | Nominal Capacity(mAh) | Standard Discharge Current(mA) | Diameter(mm) | Height(mm) | Appox. Weight(g) | |
| ER14250M | 1/2AA | 3.6 | 1200 | 1 | 14.5 | 25.0 | 10.0 | |
| ER14335M | 2/3AA | 3.6 | 1600 | 1 | 14.5 | 33.5 | 13.0 | |
| ER14505M | AA | 3.6 | 2400 | 2 | 14.5 | 50.5 | 22.0 | |
| ER17335M | 2/3A | 3.6 | 2000 | 1 | 17.0 | > 33.5 | 21.0 | |
| ER18505M | A | 3.6 | 3600 | 1 | 18.8 | 50.5 | 30.0 | |
| ER20505M | — | 3.6 | 4500 | 2 | 20.0 | 50.5 | 35.0 | |
| ER26500M | C | 3.6 | 6000 | 2 | 26.2 | 50.0 | 53.0 | |
| ER34615M | D | 3.6 | 19000 | 3 | 34.0 | 60.5 | 118.0 |
Cautions
- Do not expose to, dispose of the battery in fire
- Do not put the battery in a charger or equipment with wrong terminals connected
- Avoid excessive physical shock or vibration
- Do not use the battery mixed with other different make, type, or model batteries.
- Never use a modified or damaged charger.
- Do not leave battery in charger over 24 hours
- Avoid shorting the battery
- Keep out of the reach of children
