805070 Li-polymer 3.7V 3000mah

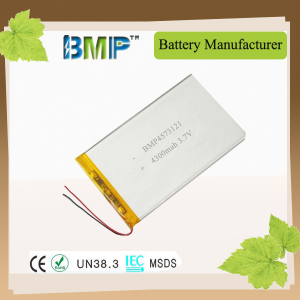

Lithium polymer battery 4573121 cell 3.7V4300mah with PCB and connector
| Battery Type | Li-Polymer battery |
| Battery Model | BMP4573121 3.7V4300mAh |
| FOB(shenzhen) | USD4.5-4.8/pc Get Latest Price |
| MOQ | 2000pcs |
| Supply Ability | 5000000pcs per month |
| Certification | CE, ROHS, UL, IEC, MSDS, UN38.3 |
| Payment Terms | TT,L/C,Western Union, Paypal |
| Lead time | 15-20days (5-7 days for samples) |
Specification
| No. | Item | Specification |
| 1 | Rated Capacity | 4500mAh |
| 2 | Nominal Voltage | 3.7V |
| 3 | Charge Limited Voltage | 4.2V |
| 4 | Discharge Cut-off Voltage | The min is 2.75V, and the standard is 3.0V. |
| End-of-charge Current | 0.02C | |
| 6 | Standard Charge | Constant Current: 0.2C(900mA) Constant Voltage: VEnd-of-charge Current: 0.02C |
| 7 | Standard Discharge | Using 0.2Cconstant current discharge to the Discharge Cut-off Voltage. Quickly discharge current: 3C(13500) |
| 8 | Maximum Continuous Charge Current | 1C(4500mA) |
| 9 | Maximum Continuous Discharge Current | 1C(4500) |
| 10 | Operating Temperature Range | Charge: 0 ~ 45’ C |
| Discharge: – 20 ~ 60’ C | ||
| StorageTemperature Range | -20 ~60’ C | |
| 11 | Operating And Storage Humidity Range | Less than 85%RH |
| 12 | Weight | 70g or less |
| 13 | Cell Dimension | 4.5*73*121mm |
Advantages
- High energy density
- High capacity, light weight
- No memory effect
- High rate discharge power cell at 20C peak discharge
- Three safety charge/discharge protections
- Long cycle life over 500 times, fast charging
- Low self-discharge rate, good energy retention
- High voltage, good to build power packs for RC Car, plane, robots etc. less cells needed
- Perfect to build battery pack for laptop and other portable power device
- Perfect to build battery pack for medical equipment back-up or EPS emergency power
- Environmentally-friendly, green and safety
Application
- (1) Portable electronic devices(2) Bluetooth headset,(3) Digital camera,(4) MP3 player, MP4 player,(5)Cellular phone, Digital phone, mobile phone,(6) PDA,(7) DMB,(8) DVD, Portable DVD(9) MD,(10) Digital camcorder, Digital camera
(11) Mining lamp,
(12) Notebook computer, Portable computer, Lap-top computer
(13) FRS,
(14) E-book,
(15) Flashlight,
Li-polymer Battery Other sizes
Cautions
- Do not expose to, dispose of the battery in fire.
- Avoid shorting the battery
- Avoid excessive physical shock or vibration
- Do not immerse in water
- Do not use the battery mixed with other different make, type, or model batteries.
- Never Use a modified or damaged charger
- Do not leave battery in charger over 24 hours.
Storaging the batteries:
The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, suggested you should carry on additional charge to the battery.
Period of Warranty:
The period of warranty is half a year from the date of shipment. Eastar Battery guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customers abuse and misuse
Over-Discharge
After the short time excessively discharges charges immediately cannot affect the use, but the long time excessively discharged can cause the battery the performance, battery function losing. The battery long-term has not used, has the possibility to be able to be at because of its automatic flashover characteristic certain excessively discharges the condition, for proventer excessively discharges the occurrece, the battery should maintain the certain electric quantity.
