Li-polymer 7.4V 2800mah battery pack – 博迈品 BMP Battery

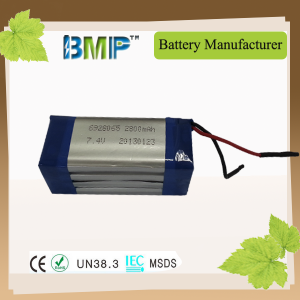

Factory price Li-polymer 7.4V 2800mah battery pack

Battery Type	Li-Polymer battery
Battery Model	BMP1402260 7.4V2800mAh
FOB(shenzhen)	USD5.89-5.25/pc Get Latest Price
MOQ	2000pcs
Supply Ability	5000000pcs per month
Certification	CE, ROHS, UL, IEC, MSDS, UN38.3
Payment Terms	TT,L/C,Western Union, Paypal
Lead time	15-20days (5-7 days for samples)

Specification

Specifications of battery pack

No.	Item	Specifications
1	Capacity	2800mAh
2	Impedance	≤40mW
3	Dimensions (mm)	14+3.5 -1.0 (T) 22+1.5 -0.5 (W) 60+1.5 -0.5(L) (mm)
4	Weight (g)	约/g
5	Max. charge current	1C mA
6	Max. charge voltage	8.4V
7	Min. discharge voltage	5.5V
8	Max discharge current	25C mA
9	Charge temperature	-0℃ ~ + 30℃
10	Discharge temperature	-0℃ ~ + 30℃
11	Storage temperature	-10℃~ +35℃
13	Storage humidity	< 85% RH
14	Standard high current discharging time	≥3.5min (25C current discharging)

Specifications of cell

No.	Items	Specifications
1	Charge voltage	4.20V
2	Nominal voltage	3.7V
3	Nominal capacity	1400mAh 1C Discharge
4	Charge current	Standard Charging:：0.5C Rapid charge： 1.0C
5	Standard Charging method	0.5C CC（constant current）charge to 4.20V,then CV(constant voltage 4.20V)charge till charge current decline to ≤0.05C
6	Charging time	Standard Charging：3.0hours(Ref.) Rapid charge： 1.5hours(Ref.)
7	Max.charge current	1C
8	Max.discharge current	25C
9	Discharge cut-off voltage	2.75V
10	Operating temperature	Charging： -0℃~30℃ Discharging：-0℃~30℃
11	Storage temperature	-10℃~ +35℃
13	Cell Weight	Approx：/g
14	Cell Dimension	Length：60mm Max (not including tabs) Width：22mm Max Thickness：3.6mm Max

Advantages

High energy density
High capacity, light weight
No memory effect
High rate discharge power cell at 20C peak discharge
Three safety charge/discharge protections
Long cycle life over 500 times, fast charging
Low self-discharge rate, good energy retention
High voltage, good to build power packs for RC Car, plane, robots etc. less cells needed
Perfect to build battery pack for laptop and other portable power device
Perfect to build battery pack for medical equipment back-up or EPS emergency power
Environmentally-friendly, green and safety

Application

(1) Portable electronic devices(2) Bluetooth headset,(3) Digital camera,(4) MP3 player, MP4 player,(5)Cellular phone, Digital phone, mobile phone,(6) PDA,(7) DMB,(8) DVD, Portable DVD(9) MD,(10) Digital camcorder, Digital camera
(11) Mining lamp,

(12) Notebook computer, Portable computer, Lap-top computer

(13) FRS,

(14) E-book,

(15) Flashlight,

Li-polymer Battery Other sizes

Cautions

Do not expose to, dispose of the battery in fire.
Avoid shorting the battery
Avoid excessive physical shock or vibration
Do not immerse in water
Do not use the battery mixed with other different make, type, or model batteries.
Never Use a modified or damaged charger
Do not leave battery in charger over 24 hours.

Storaging the batteries:

The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, suggested you should carry on additional charge to the battery.

Period of Warranty:

The period of warranty is half a year from the date of shipment. Eastar Battery guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customers abuse and misuse

Over-Discharge
After the short time excessively discharges charges immediately cannot affect the use, but the long time excessively discharged can cause the battery the performance, battery function losing. The battery long-term has not used, has the possibility to be able to be at because of its automatic flashover characteristic certain excessively discharges the condition, for proventer excessively discharges the occurrece, the battery should maintain the certain electric quantity.
