ICR18650 22.2V2600mAh lithium ion battery pack

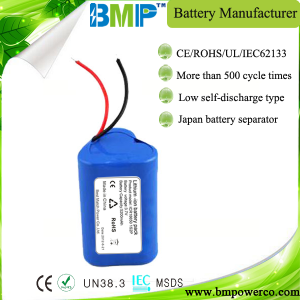

Lithium battery pack 1S3P ICR18650 3.7V6000mah
| Battery Type | Cylindrical lithium-ion battery pack 1S3P |
| Battery Model | ICR18650 3.7V6000mah |
| FOB(shenzhen) | USD3.05-3.25/pc Get Latest Price |
| MOQ | 1000pcs |
| Supply Ability | 5000000pcs per month |
| Certification | CE, ROHS, UL, IEC, MSDS, UN38.3 |
| Payment Terms | TT,L/C,Western Union, Paypal |
| Lead time | 15-20days(5-7 days for samples) |
Specification
Battery Type: Rechargeable Li-ion Cylindrical Cell
Nominal Capacity: 6000mAh
Minimum Capacity: 5850mAh
Nominal Voltage: 3.7V
Discharge cut-off Voltage: 2.75V
Max. Charge Voltage: 4.25V
Nominal Dimension: 38*38*71mm
Internal Resistance: ≤240mΩ
Standard Charge: 0.2C for 10hrs at 20°c
Service Life: >500cycle (IEC standard)
Average Weight: 160g
Standard Charge Current: 3A
Rapid Charge Current: 6A
Max. Pulse Discharge Current: 6A
Continuous overcharge: 1C
Operation temperature: -20°c ~ +60°c
Advantages
1. Long working life
2. Low self-discharge rate
3. Wide working temperature range
4. Environmental-friendly
5. Application in many industrial purpose
Application
The batteries are widely used in miner lights, LED light, emergency lights, flashlights, laptop, portable DVD, wireless communication product, power tools and etc.
Lithium-ion Battery Other sizes
| LI-ION BATTERY | |||||
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Dimension (mm) | Weight (gram) | |
| Diameter | Height | ||||
| ICR10250 | 3.7V | 150 | 10.2 | 25 | 6 |
| ICR10430 | 3.7V | 320 | 10.2 | 43 | 9 |
| ICR10440 | 3.7V | 360 | 10.2 | 44 | 10 |
| ICR14250 | 3.7V | 280 | 14.1 | 24.7 | 8 |
| ICR14430 | 3.7V | 650 | 14.1 | 42.7 | 18 |
| ICR14500 | 3.7V | 700 | 14.1 | 49.7 | 19 |
| ICR17335 | 3.7V | 650 | 16.8 | 33 | 18 |
| ICR17500 | 3.7V | 110 | 16.8 | 49.5 | 4 |
| ICR17650 | 3.7V | 1550 | 16.8 | 64.5 | 45 |
| ICR18490 | 3.7V | 1400 | 18.2 | 48.5 | 33 |
| ICR18650 | 3.7V | 2200 | 18.2 | 64.7 | 47 |
| ICR26650 | 3.7V | 3300 | 26 | 64.7 | 90 |
Cautions
- Do not expose to, dispose of the battery in fire
- Do not put the battery in a charger or equipment with wrong terminals connected
- Avoid excessive physical shock or vibration
- Do not use the battery mixed with other different make, type, or model batteries.
- Never use a modified or damaged charger.
- Do not leave battery in charger over 24 hours
- Avoid shorting the battery
- Keep out of the reach of children
