ICR18650 22.2V2600mAh lithium ion battery pack

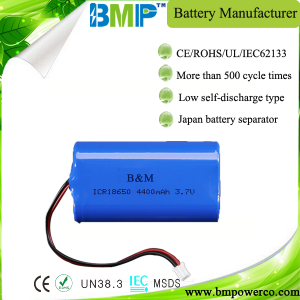

Rechargeable lithium-ion batterypack ICR18650 3.7V4400mAh
| Battery Type | Cylindrical lithium-ion battery pack |
| Battery Model | ICR18650 3.7V4400mah |
| FOB(shenzhen) | USD1.65-1.85/pc Get Latest Price |
| MOQ | 1000pcs |
| Supply Ability | 5000000pcs per month |
| Certification | CE, ROHS, UL, IEC, MSDS, UN38.3 |
| Payment Terms | TT,L/C,Western Union, Paypal |
| Lead time | 15-20days(5-7 days for samples) |
Specification
- 2 x 2200mAh Lithium Ion 18650-sized cells in parallel
- Dimensions: 69mm x 37mm x 18mm / 2.7″ x 1.5″ x 0.71″
- Weight: 95 g/ 3.5 oz
- Max charging rate: 1.5A
- Max continuous discharge rate: 4A
Need a big battery for your project? This lithium ion pack is made of 2 balanced 2200mAh cells for a total of 4400mA capacity! The cells are connected in parallel and spot-welded to a protection circuit that provides over-voltage, under-voltage and over-current protection.
Each cell can provide 2C of current (4400mA) so all together the peak current you can draw is over 8 Amps. Note that these batteries are not designed to sustain such high loads, we suggest keeping any constant current draw under 4A.
The packs come with color coded wires, and now they come with a JST 2-pin cable attached for use with our chargers! Because they have a genuine JST connector, not a knock-off, the cable wont snag or get stuck in a matching JST jack, they click in and out smoothly. The cables are rated for 2A so if you use them keep that in mind.
The included protection circuitry keeps the battery voltage from going too high (over-charging) or low (over-use) which means that the battery will cut-out when completely dead at 2.5V. However, even with this protection it is very important that you only use a LiIon/LiPoly constant-voltage/constant-current charger to recharge them and at a rate of 1.5A or less.
Like most lithium-ion packs, the batteries we sell do not have thermistors built in. This is why we suggest charging at 1/2C or even less – 1.5A max in this case. Of course, you can charge at a lower rate – it’ll just take a little longer to fill up.
Advantages
1. Long working life
2. Low self-discharge rate
3. Wide working temperature range
4. Environmental-friendly
5. Application in many industrial purpose
Application
The batteries are widely used in miner lights, LED light, emergency lights, flashlights, laptop, portable DVD, wireless communication product, power tools and etc.
Lithium-ion Battery Other sizes
| LI-ION BATTERY | |||||
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Dimension (mm) | Weight (gram) | |
| Diameter | Height | ||||
| ICR10250 | 3.7V | 150 | 10.2 | 25 | 6 |
| ICR10430 | 3.7V | 320 | 10.2 | 43 | 9 |
| ICR10440 | 3.7V | 360 | 10.2 | 44 | 10 |
| ICR14250 | 3.7V | 280 | 14.1 | 24.7 | 8 |
| ICR14430 | 3.7V | 650 | 14.1 | 42.7 | 18 |
| ICR14500 | 3.7V | 700 | 14.1 | 49.7 | 19 |
| ICR17335 | 3.7V | 650 | 16.8 | 33 | 18 |
| ICR17500 | 3.7V | 110 | 16.8 | 49.5 | 4 |
| ICR17650 | 3.7V | 1550 | 16.8 | 64.5 | 45 |
| ICR18490 | 3.7V | 1400 | 18.2 | 48.5 | 33 |
| ICR18650 | 3.7V | 2200 | 18.2 | 64.7 | 47 |
| ICR26650 | 3.7V | 3300 | 26 | 64.7 | 90 |
Additional safety notes
Do not use a NiMH/NiCad/lead-acid charger! Use a proper LiIon/LiPoly charger for 3.7/4.2V cells. Do not charge unattended. Also, do not abuse these batteries, do not short, bend, crush or puncture. As with all Lithium ion batteries and with any power source – they should be used by experts who are comfortable working with power supplies.
