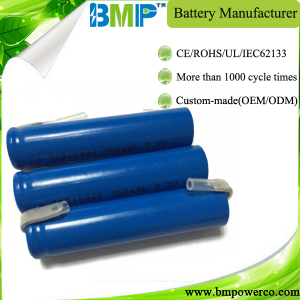

3.7V 360mAh AAA Lithium Li-ion Rechargeable Battery ICR 10440 For LED Flashlights
| Battery Type | Cylindrical lithium-ion battery cell |
| Battery Model | ICR10440 3.7V360mah |
| FOB(shenzhen) | USD0.52-0.55/pc Get Latest Price |
| MOQ | 1000pcs |
| Supply Ability | 5000000pcs per month |
| Certification | CE, ROHS, UL, IEC, MSDS, UN38.3 |
| Payment Terms | TT,L/C,Western Union, Paypal |
| Lead time | 15-20days(5-7 days for samples) |
Specification
-Rated Capacity: 345mAh-360mAh
-Cell Dimension: High 44±0.5mm Diameter 10.0±0.2mm
-Nominal Voltage: 3.7V
-Voltage at end of Discharge: 2.75V
-Charging Voltage: 4.2V
-Weight: 10g
-Internal Impedance: ≤110mΩ
-Maximum Continuous Charge Current: 1.0C
-Maximum Continuous Discharge Current: 2.0C
-Operation Temperature Range:
Charge: 0~45°c
Discharge: -10~60°c
-Cycle Life: 600cycle times
Advantages
1. Long working life
2. Low self-discharge rate
3. Wide working temperature range
4. Environmental-friendly
5. Application in many industrial purpose
Application
The batteries are widely used in miner lights, LED light, emergency lights, flashlights, laptop, portable DVD, wireless communication product, power tools and etc.
Lithium-ion Battery Other sizes
| LI-ION BATTERY | |||||
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Dimension (mm) | Weight (gram) | |
| Diameter | Height | ||||
| ICR10250 | 3.7V | 150 | 10.2 | 25 | 6 |
| ICR10430 | 3.7V | 320 | 10.2 | 43 | 9 |
| ICR10440 | 3.7V | 360 | 10.2 | 44 | 10 |
| ICR14250 | 3.7V | 280 | 14.1 | 24.7 | 8 |
| ICR14430 | 3.7V | 650 | 14.1 | 42.7 | 18 |
| ICR14500 | 3.7V | 700 | 14.1 | 49.7 | 19 |
| ICR17335 | 3.7V | 650 | 16.8 | 33 | 18 |
| ICR17500 | 3.7V | 110 | 16.8 | 49.5 | 4 |
| ICR17650 | 3.7V | 1550 | 16.8 | 64.5 | 45 |
| ICR18490 | 3.7V | 1400 | 18.2 | 48.5 | 33 |
| ICR18650 | 3.7V | 2200 | 18.2 | 64.7 | 47 |
| ICR26650 | 3.7V | 3300 | 26.0 | 64.7 | 90 |
Cautions
- Do not expose to, dispose of the battery in fire.
- Avoid shorting the battery
- Avoid excessive physical shock or vibration
- Do not immerse in water
- Do not use the battery mixed with other different make, type, or model batteries.
- Never Use a modified or damaged charger
- Do not leave battery in charger over 24 hours.
Storaging the batteries:
The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, suggested you should carry on additional charge to the battery.
Period of Warranty:
The period of warranty is half a year from the date of shipment. Eastar Battery guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customers abuse and misuse
Over-Discharge
After the short time excessively discharges charges immediately cannot affect the use, but the long time excessively discharged can cause the battery the performance, battery function losing. The battery long-term has not used, has the possibility to be able to be at because of its automatic flashover characteristic certain excessively discharges the condition, for proventer excessively discharges the occurrece, the battery should maintain the certain electric quantity.
